Pon Otdr Testing Fiber Optic Tools Hand Held Ftth Palm OTDR SM MM

Ask Lasest Price
Brand Name :	Fibery
Model Number :	AOR500
Certification :	ISO9001
Payment Terms :	T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :	1000Set/Month
Delivery Time :	4-6 work days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Pon Otdr Testing Fiber Optic Tools Hand Held Ftth Palm OTDR SM MM

Ftth Palm OTDR Hand-Held fiber optic SM MM Pon OTDR Tester Fiber Optic Tools

Specification

	AOR500-S	AOR500-A	AOR500-B
Wavelength	1310±20nm / 1550±20nm
Dynamic Range *	24/22dB	28dB / 26dB	32dB / 30dB
Event Dead Zone **	< 1.5m
Attenuation Dead Zone	< 8.0m
Pulse Width	10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1000ns,2500ns,5000ns, 10000ns
Distance uncertainty	±(1.0m ± 0.005% * testing distance ± resolution)
Linearity	±0.05dB/ dB
Loss Resolution	0.001dB
Distance Resolution	1m
Connector	FC (optional: SC, ST, LC)
VFL	1mW
Data Storage	> 10000 traces (standard 1GB SD card)
Display	3.5 inch TFT color LCD
Interface	USB
Battery	Built-in rechargeable battery
Working Time	>10 hrs (Bellcore TR-NWT-001138)
Operating Temp.	-10 -- +50 ℃, < 90%RH
Storage Temp.	-20 -- +60 ℃, < 90%RH
Net Weight	0.9 Kg
Dimension	230mm×120mm×60mm

* pulse width 10us, average time>5 minutes, SNR=1, 23℃±2℃

** pulse width 10ns, terminal refection loss>40dB

Pon Otdr Testing Fiber Optic Tools Hand Held Ftth Palm OTDR SM MM

Feature

Convenient one-button testing
High speed signal processing, less test time and fast analysis
Color TFT LCD
USB port connect to PC
Input optical signal auto detection and self-protection
Built-in VFL

Accessories

AC/DC adapter	1
Operation guide	1
Carrying bag	1
USB cable	1
Calibration certificate	1
SC interchangeable connector	optional
ST interchangeable connector	optional
LC interchangeable connector	optional

Pon Otdr Testing Fiber Optic Tools Hand Held Ftth Palm OTDR SM MM

Application

Typical Solution:FTTH .

Typical business : Cable testing

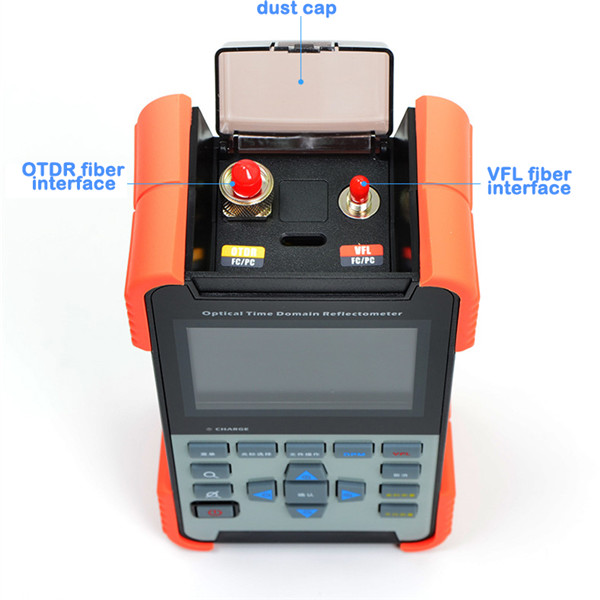

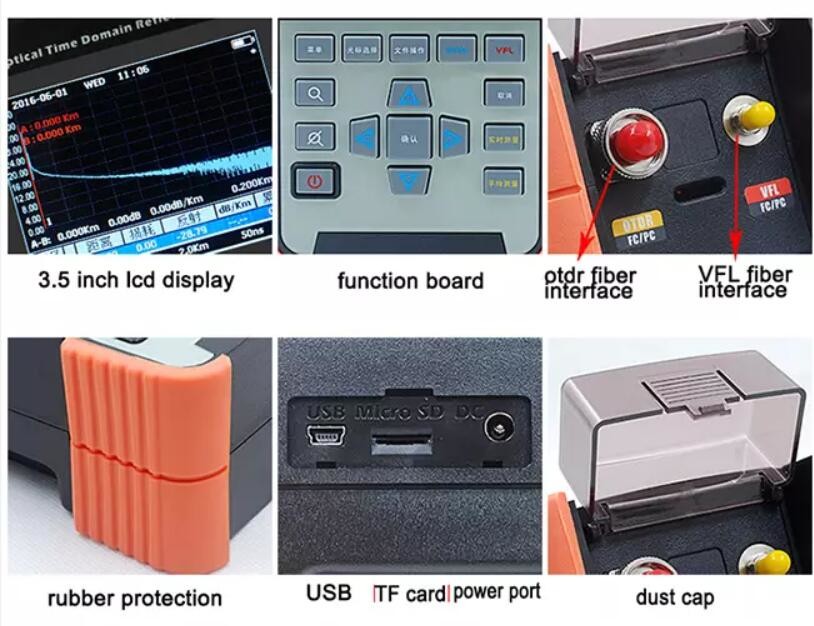

Product Pictures

Pon Otdr Testing Fiber Optic Tools Hand Held Ftth Palm OTDR SM MM

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
