Fiber Optic Stripping Tool Miller CFS-3 Hand Three-port Fiber Stripping Pliers

Description

250mm coating for stripping 125mm fibers
The top opening can be used for stripping fiber outer sheath
The V edge of the clamp blade and the opening of the 140um can be used to strip the 250um cladding of the 125um fiber

When not in use, the knife edge lock is closed, and the optical fiber is not damaged. All cutting sections have precise

mechanical tolerances to ensure clean and smooth operation

Feature

1. For stripping 250 micron buffer coating to expose 125 micron cl-added fiber
2. Second hole for stripping 2-3 mm fiber jackets
3. 140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
4.. Pr-set at the factory - no adjustments needed
5. Will not scratch or nick glass fiber
6. All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
7. Comfort-grip, ergonomic handles
8. Lock to hold tool closed when it is not in use
9. Length: 165 mm; weight: 113 g

Specification

Application

1.Fiber Optical Communication Systems

2. Optical Fiber CATV
3. Passive Optical Network (PON)
4. Fiber Optic Amplifiers
5. Fiber Optic Access Networks/LAN

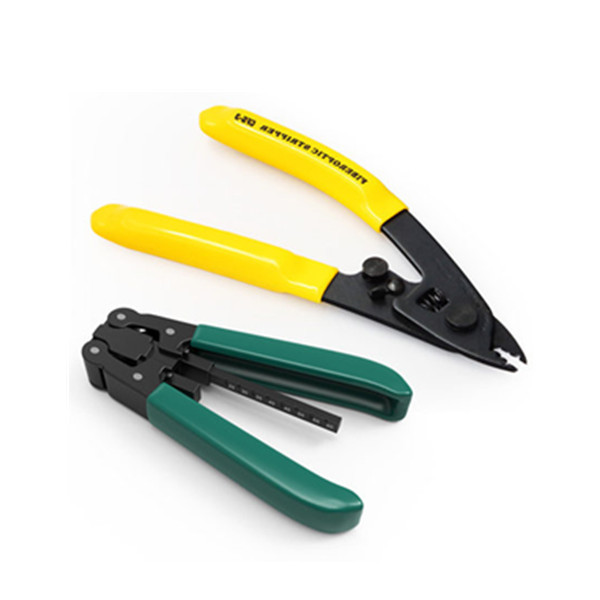

Product Pictures
