FTTH Fiber Optic ToolKit with Optical Power Meter and Visual Fault
Locator
Description
FTTH fiber optic tool kits is especially used in the FTTx solution,
combine the function of the in-door cable stripper, cleaver,
cleaning, and testing.
This is a perfect tool kits in the fiber optic Installation and
maintenance.
Fiber Optic FTTH Tool Kit with FC-6S Fiber Cleaver and Optical
Power Meter 5km Visual Fault Locator 1mw Wire stripper
Feature
1. Use with Pre-Polished Fiber Optic Connectors
2. Cut down on overall fiber installation cost by reducing
termination time
3 .Field assembly, No polishing required
4. Fast and easy to terminate
5. Compact waterproof protection bag
6. Encourages safe handling of fiber off-cuts

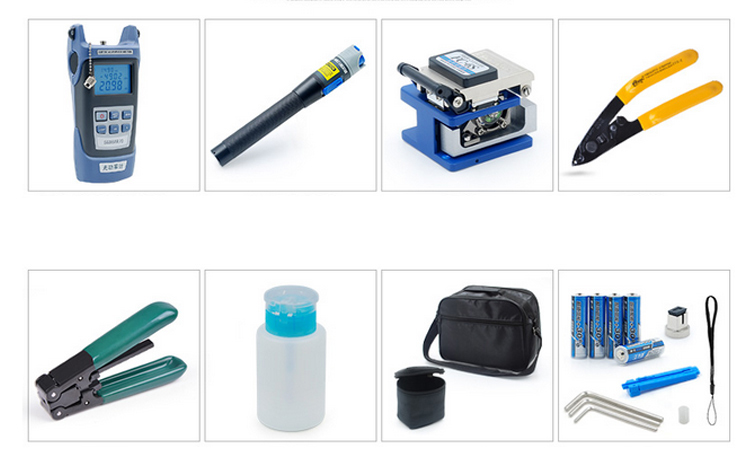

Standard Package
| Item | Name | Qty |
| 1 | Carrying Case | 1 |
| 2 | Optical Power Meter 5km | 1 |
| 3 | Fiber Cleaver | 1 |
| 4 | VFL 5km optical pen | 1 |
| 5 | FTTH Drop Cable Stripper | 1 |
| 6 | Miller Clamp | 1 |
| 7 | Alcohol Bump Bottle | 1 |
| 8 | Fiber Cutting Marker | 1 |
| 9 | Dust-free Paper | 1 |
| 10 | FC Adapter for Optical Power Meter | 1 |
11 |
SC Adapter for Optical Power Meter |
1
|
Detail
optical power meter 5km
high precision, low error
support FC/ST/SC connector
support testing for 7 kind of wavelength
support regular shut down with backlight
support automatic shut down
optical pen 5km:
Imported laser head, High thermal conductivity
Aluninum alloy case, good durability
the ceramic die can be replaced
FC-6S Fiber cleaver:
Imported refining tungsten steel blade
Automatic rebound
Double mouth Miller clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Wire stripper
Belt scale, fatigue resistance
Pressure resistance
Strength type, long life
can cut indoor cable for wire
Squeezed type alcohol bottle and other Accessories
Application
1. Fiber Optical Communication Systems
2. Optical Fiber CATV
3. Passive Optical Network (PON)
4. Fiber Optic Amplifiers
5. Fiber Optic Access Networks/LAN
Product Pictures
Package details
Shipping
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
