    1 EPON Port Singlemode FTTH ONU Wifi 1Ge+3Fe+Wifi+1Pots+Catv With SC/APC Connector

    Epon Onu Wifi 1Ge+3Fe+Wifi+1Pots+Catv Epon Onu For Fiber To The Home
    Description
    FYE1G3FWPC series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions , The carrier-class FTTH application provides data service access.
    FYE1G3FWPC series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
    FYE1G3FWPC series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X
    FYE1G3FWPC series is designed by Realtek chipset 9603C
    Functional Feature
    • Support EPON and GPON, and switch mode automatically.
    • Support ONU auto-discovery/Link detection/remote upgrade of software
    • WAN connections support Route and Bridge mode
    • Route mode supports PPPoE/DHCP/ static IP
    • Support WIFI Interface and multiple SSID
    • Support QoS and DBA
    • Support port Isolation and port vlan configuration
    • Support Firewall function and IGMP snooping multicast feature
    • Support LAN IP and DHCP Server configuration;
    • Support Port Forwarding and Loop-Detect
    • Support TR069 remote configuration and maintenance
    • Support CATV interface for Video Service
    • Support Pots interface for VoIP Service
    • Specialized design for system breakdown prevention to maintain stable system

    Hardware Specificaion

    Technical itemDetails

    PON Interface

    1 G/EPON port(EPON PX20+ and GPON Class B+)

    Receiving sensitivity: ≤-27dBm

    Transmitting optical power: 0~+4dBm

    Transmission distance: 20KM

    WavelengthTx: 1310nm, Rx: 1490nm
    Optical InterfaceSC/APC Connector

    POTS interface

    1 FXS, RJ11 connector

    Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay

    Line testing according to GR-909

    LAN Interface1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

    CATV Interface

    RF, optical power : +2~-18dBm

    Optical reflection loss: ≥45dB

    Optical receiving wavelength: 1550±10nm

    RF frequency range: 47~1000MHz, RF output impedance: 75Ω

    RF output level: 78dBuV

    AGC range: 0~-15dBm

    MER: ≥32dB@-15dBm

    Wireless

    Compliant with IEEE802.11b/g/n,

    Operating frequency: 2.400-2.4835GHz

    support MIMO, rate up to 300Mbps,

    2T2R,2 external antenna 5dBi,

    Support: Multiple SSID

    Channel: Auto

    Modulation type: DSSS, CCK and OFDM

    Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

    LED

    14, For Status of POWER, LOS, PON, SYS,LAN1~LAN4 ,WIFI, WPS,

    Internet, FXS, Worn, Normal(CATV)

    Push-Button3,For Function of Reset, WLAN, WPS
    Operating Condition

    Temperature: 0℃~+50℃

    Humidity: 10%~90%(non-condensing)

    Storing Condition

    Temperature: -30℃~+60℃

    Humidity: 10%~90%(non-condensing)

    Power SupplyDC 12V/1A
    Power Consumption≤6W
    Dimension155mm×92mm×34mm(L×W×H)
    Net Weight0.24Kg

    Pilot LampStatusDescription

    PWR

    OnThe device is powered up.
    OffThe device is powered down.

    PON

    OnThe device has registered to the PON system.
    BlinkThe device is registering the PON system.
    OffThe device registration is incorrect.

    LOS

    BlinkThe device doses not receive optical signals.
    OffThe device has received optical signal.

    SYS

    OnThe device system runs normally.
    OffThe device system runs abnormally.

    INTERNET

    BlinkThe device network connection is normal.
    OffThe device network connection is abnormal.

    WIFI

    OnThe WIFI interface is up.
    BlinkThe WIFI interface is sending or/and receiving data (ACT).
    OffThe WIFI interface is down.

    FXS

    OnPhone has registered to the SIP Server.
    BlinkPhone has registered and data transmission (ACT).
    OffPhone registration is incorrect.

    WPS

    BlinkThe WIFI interface is securely establishing a connection.
    OffThe WIFI interface does not establish a secure connection.

    LAN1~LAN4

    OnPort (LANx) is connected properly (LINK).
    BlinkPort (LANx) is sending or/and receiving data (ACT).
    OffPort (LANx) connection exception or not connected.
    Worn (CATV)OnInput optical power is higher than 3dbm or lower than -13dbm
    OffInput optical power is between -13dbm and 3dbm
    Normal (CATV)OnInput optical power is between -13dbm and 3dbm
    OffInput optical power is higher than 3dbm or lower than -13dbm

    Application

    Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)

    Typical Business:INTERNET,IPTV,VOD,IP Camera,CATV , VoIP etc

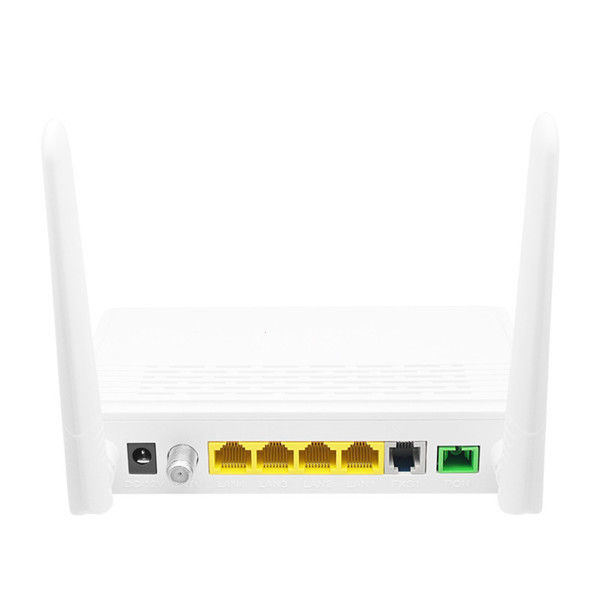

    Product Pictures

    1 EPON Port Singlemode FTTH ONU Wifi 1Ge+3Fe+Wifi+1Pots+Catv With SC/APC Connector1 EPON Port Singlemode FTTH ONU Wifi 1Ge+3Fe+Wifi+1Pots+Catv With SC/APC Connector


    Shipping

    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
