Fiber Coupler Adapter LC Female To Female Duplex Optical Adaptor Lc
Upc
Description
Fiber optic adapter is also called fiber optic coupler. It contains
the interconnect sleeve, that holds the two ferrules together.It is
used to provide a cable to cable fiber connection.People sometimes also name them to be mating sleeves and hybrid
adaptors. They include many types, such as FC, LC SC, ST, LC, MTRJ,
Widely used in ODF, fiber transmission equipment etc.
The product is an elastic clip structure, which is convenient and
quick to connect and easy to install on site. The internal assembly
is 100% high quality ceramic (zirconia) sleeve, which has extremely
reliable alignment ability, good repeatability and low insertion
loss. The structure conforms to the domestic optical fiber industry
standard and the international IEC standard; it is suitable for
various connection types of optical fiber LC type.
Feature
LC/SC/FC/ST Type Optional
UPC or APC Optional
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
Zirconia Sleeve ,Compact design
Low insertional loss, High return loss
Comply with IEC, Telcordia GR 326 and JIS standard
Low insertion and back reflection loss, high precision alignment
Telcordia, TIA/EIA compliance
Compact design, Plastic housing
Good changeability and repeatability
Good Durability
Specification
| Name | Fiber Optic Adaptor |
| Connection locking force | ≥70N |
| Insertion loss | <0.2dB |
| Ruturn Loss | ≥50db |
| Repeatability | ≤0.2dB |
| Repeated insertion | ≥1000 times |
| A adapter | LC |
| A end polishing | PC, UPC, APC |
| B adapter | SC |
| B end polishing | PC, UPC, APC |
| Wavelength | 1200-1600 |
| Mode | SM, OM1, OM2, OM3, OM4 |
| Color | Green;Blue |
| Certification | RoHS and IEC |
| Other info. customize | Sleeve type: Zorconia or Metal Dust cap color: Standard black or provinding figure to confirm Dust cap shape: as showed in the figure or provinding other figure
to confirm Flange: without flange |
Application
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks

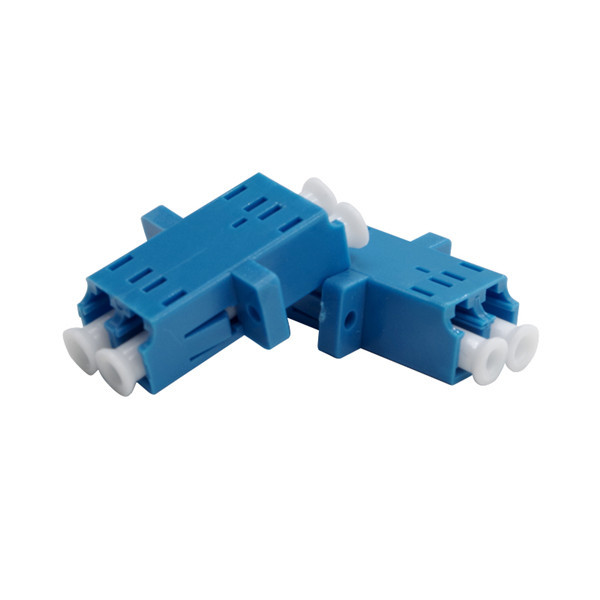

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
