Fiber Optic Attenuator LC UPC Singlemode Male To Female 3 5 7 10db
LC Attenuator
Description
Fiber optic attenuators are used in the fiber optic links to reduce
the optical power at a certain level. Male to female type fixed
attenuator are available for LC, SC, ST, FC types, select from
1310nm or 1550nm, these optical attenuators reduce the power or
signal in a fiber optic cable at values from 0 to 30 dB.
Our fixed fiber optic attenuators are being used for fiber
amplifiers, DWDM and telecommunications equipment, compliance with
ROHS standard.
Feature
Fixed Attenuator(Fixed Type FC, SC, ST, LC)
Female to male type ( FC, SC, ST, LC)
In-Line Attenuator(Fused and Fiber Jumpers Type)
High Return Loss(In-Line and High RL Type)
Exact and Stable Attenuation(Variable Type)
Low PDL and Low back reflection
High power endurance
Wavelength independent
Precise control of attenuation range
Wavelength Independent (DWDM);
Simple and Reliable Structure.
Specification
Item | Parameter |
Model | Fixed, Female&Male, In-line, Variable |
Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
Attenuation Range | 1~30dB |
Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
Maximum Optical Input Power | 1000mW |
Polarization Dependent Loss | ≤0.1dB |
Working Temperature | -40°C~+75°C |
Storage Temperature | -40°C~+ 85°C |
Humidity | 95%RH |
Application
CATV Fiber Optic Sensor
Optic distribution frame
fiber optic network systemnsmission system
OADM
Fiber optical telecommunication system

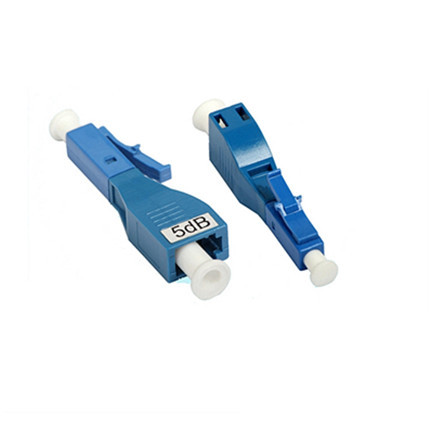

Product pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
