Indoor Outdoor Fiber Optic Cable Single Mode Multi Mode 1 2 4 Cores White GJYXCH

Ftth Optical Fiber Cable Indoor Outdoor 1 2 4 Cores White GJYXCH Ftth Drop Cable

Description

The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath..

Characteristics

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance

Feature

Fiber count	1F/2F/4F
Attenuation	1310nm:≤0.36 1550nm:≤0.22
Color Of fiber	Blue Orange Green Brown
Fiber Type	G652D/G657A1/G657A2
Strength member	Steel wire/FRP/KFRP
Outer sheath	LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions	2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range	-20 ℃ to + 70 ℃
Installation temperature range	-0 ℃ to + 60 ℃
Transport and storage temperature range	-20 ℃ to + 70 ℃
Tension Load (N)	Short term :800N Long term :500N
Crush Load(N)	Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius	30 x OD
Minimal operation bending radius	15 x OD
Cable marking	The marking length 1meter apart , as required

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)×(3.4±0.2)	8.5	30/60	300/1000	15/30
1	(2.0±0.2)×(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)×(4.0±0.2)	10	30/60	300/1000	15/30

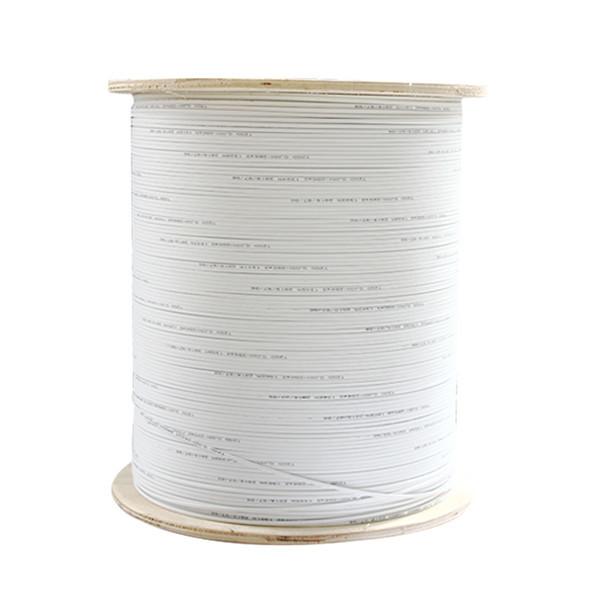

Product Pictures

Indoor Outdoor Fiber Optic Cable Single Mode Multi Mode 1 2 4 Cores White GJYXCH

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
