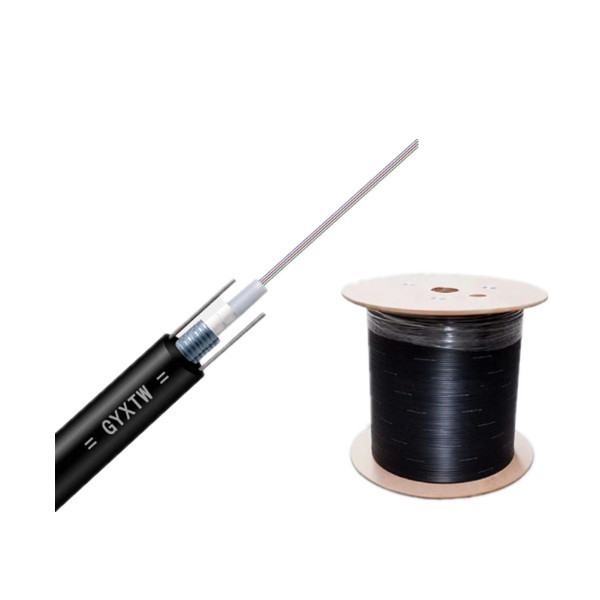

Outdoor Armoured Fiber Optic Cable G652D 4/6/8/12 Cores Center Loose Tube Duct GYXTW

Product Categories

Shenzhen Fibery Photoelectron Technology Ltd.,

Contact Now

12 Cores Center Loose Tube Duct GYXTW

Ask Lasest Price
Brand Name :	Fibery
Model Number :	GYXTW
Payment Terms :	T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :	10000Reel/Month
Delivery Time :	4-6 work days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Outdoor Armoured Fiber Optic Cable G652D 4/6/8/12 Cores Center Loose Tube Duct GYXTW

Outdoor Armoured 4,6,8,12 CoreS Center Loose Tube Duct GYXTW Fiber Optic Cable

Description

The single mode optical fiber cable herein after referred to as the “Cable”comply with the requirements of this specification and generally meet ITU-T Recommendation G.652 G.652 covers single-mode NDSF (non-dispersion-shifted fiber) which is optimized for 1310nm wavelength.

The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath..

Parameter	Unit	Singlemode
Number of core	cores	6
Insertion loss(typical)	dB	≤0.3
Return loss	dB	≥50
Operating wavelength	nm	1310, 1510
Exchangeability	dB	≤0.1
Vibration	dB	≤0.2
Operating temperature	°C	-20~60
Storage temperature	°C	-20~60

Characteristics

Temperature Characteristics:

Operate temperature range: -40oC to +70oC

Storage temperature range: -40oC to +70oC

Structure Characters:

Waterproofing layer between the steel tape and cable core

"8" Figure cross section

Steel messenger wire

Double coated PE corrugated steel tape under PE sheath

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	'@850nm			≤3.0 dB/km	≤3.0 dB/km
	'@1300nm			≤1.0 dB/km	≤1.0 dB/km
	'@1310nm	≤0.36 dB/km	≤0.40 dB/km
	'@1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth (Class A)	'@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	'@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short TermN	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYXTW- 2~12	2~12	8	60	600/1500	300/1000	10D/20D
GYXTW- 12~24	12~24	9	90	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40℃ to + 70℃

Product Pictures

Outdoor Armoured Fiber Optic Cable G652D 4/6/8/12 Cores Center Loose Tube Duct GYXTW

Shipping

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
