High Power EDFA CATV 1550nm Wdm Multi-Ports EDFA With Dual Power Supply

Description

1. 15EAxx EDFA is based on the paragraph 08EAxx improvement model, mainly to solve the external hot backup power supply, users can configure backup power supply according to the power of arbitrary, damaged power supply does not need to open lid can be arbitrary replacement, light box adopts modular structure and convenient maintenance.

2. 15EAxx High Power EDFA is an important transmission equipment of 1550nm optical fiber communication system, mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over a long distance.

3. FY-15EAxx series CATV 1550nm High Power Multi-ports EDFA with Dual power supply technical performance indicators of erbium doped fiber amplifier and the technology can be comparable to similar imported models, and cost-effective, easy installation is choice equipment to build large and medium-size of1550nmcatv optical fiber transmission network.

Parameter

Feature

1. Using erbium and ytterbium Co doped double clad fiber technology；
2. The built-in low noise preamplifier without EDFA cascade reduces the deterioration of CNR and MER greatly.；
3. The output port is optional: SC connector 4~16 path optional; LC joint 8~32 road optional, WDM can be selected.；
4. The rear panel can be disassembled and replaced according to the number of output ports.
5. The front panel key can set up and modify the device performance parameters to meet different network design requirements of customers.
6. The front panel indicator lights monitor and instruct the running status of device parameters in real time. It is easy to find problems in time;
7. The total output power is optional: the highest 5W (37dBm) total output.
8. Low noise coefficient: 0dBm input < 5dB;
9. The perfect network management interface, conforms to the SNMP network management protocol;
10. The server's mature dual power hot backup structure and the intelligent temperature control system controlled by microcomputer can effectively improve the system reliability.
11. The output power +0.5~-4dBm is adjustable.
12. The 144*32 blue dot matrix LCD display is used to realize parameter on-site monitoring.

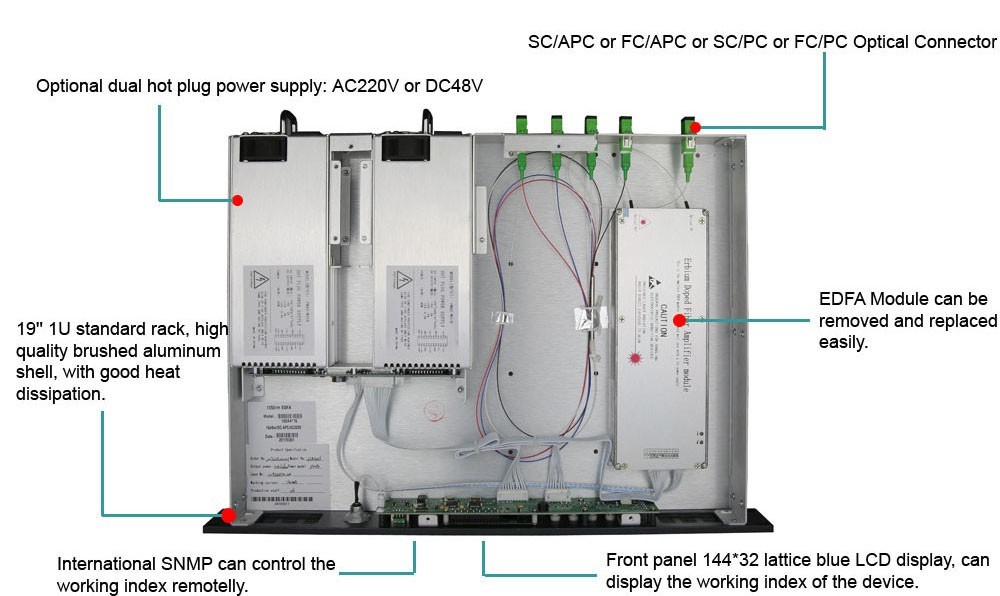

Product Picture
