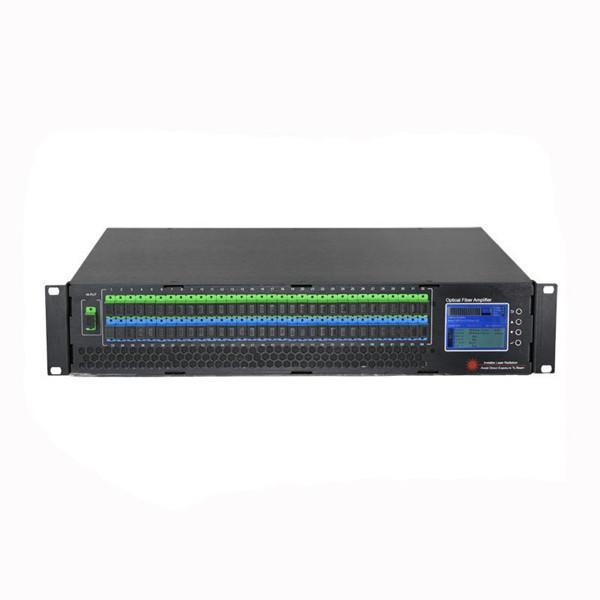

2U High Power Ytterbium Yb Doped Fiber Amplifier 32 Outputs 1535~1565nm

2U High Power Ytterbium Optical Amplifier,32 Outputs Fiber Optic EDFA Equipment

Description

The 50EYAxx series high power amplifier is a high power multi-output optical fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities. WS-50EYAxx can achieve single-wavelength cable TV transmission, CWDM signal-fiber three- wave, flat-gain type, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment

Feature

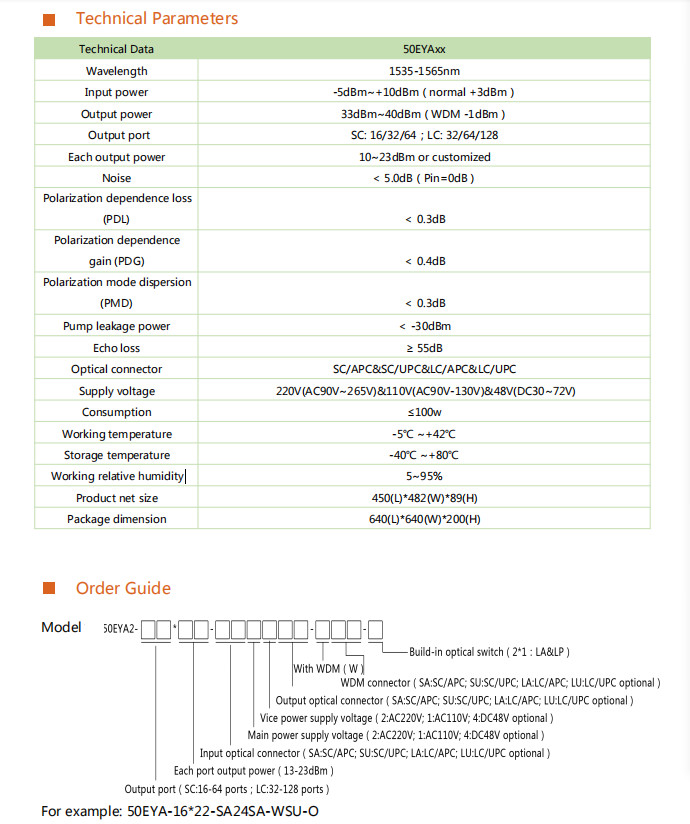

Item		Unit	Technical paremeter
Bandwidth		nm	1545~1565
Input optical power		dBm	-5 ~ +10
Max output power		dBm	40
Output power stability		dBm	±0.5
Noise		dB	≤ 5.0
Return loss	Input	dB	≥ 45
	Output	dB	≥ 45
Optical connector			SC/APC&LCAPC
C/N		dB	≥ 50
C/CTB		dB	≥ 63
C/CSO		dB	≥ 63
Supply voltage		V	A:AC160V~250V(50Hz);B:DC48V
Consumption		W	≤ 90
Working temperature		℃	-10 - +42
Max relative humidity		%	Max 5% no condensation
Storage temperature		℃	-30 ~ +70
Devise size		mm	464(L)440(W)89(H)
Package size		mm	640(L)640(W)200(H)

2U High Power Ytterbium Yb Doped Fiber Amplifier 32 Outputs 1535~1565nm

Payment terms

Payment terms

1) Accepted small order,OEM,etc.

2) Ordinary delivery time: 3-7 days, according to order quantity.

3) Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment

4) Accept T/T 100% advance. Western Union, PayPal.

5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility

Shipping

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
