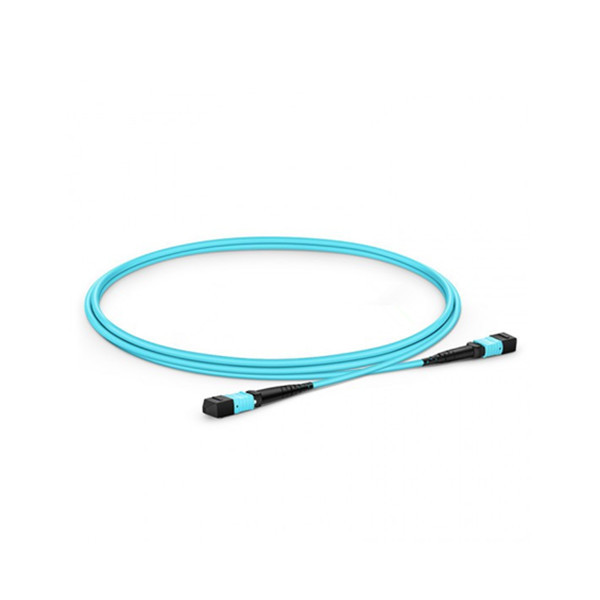

Fiber Optic Patch Cord MTP-MTP Famale OM3 40G 12/24 Cores Singlemode Patch Cable

Description

MPO / MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with Telcordia GR-1435-Core Compliant.

The fiber optic patch cords are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss.

They come with your choice of simplex or duplex cable ,LC/SC/FC/ST/MU/MTP etc connectors can be choosed

Feature

• 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request.
• Standard size is 1U, 2U, or 4U are available on request
• 12,24,48,96Port optional
• Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
• Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
• Provide termination, protection, connection, management of fiber optic cable
• RoHS compliant
• Full assembly (loaded) or empty panel optional

Specificaion

Connector type	FC,SC,LC,ST,MU,E2000,D4,DIN,MTP
Fiber mode	SM			MM
End face	PC	UPC	APC	PC
IL(dB)	≤0.3	≤0.3	≤0.3	≤0.3
RL(dB)	≥45	≥50	≥55	≥35
Fiber Count	Usually Simplex/Duplex
Jacket OD	0.9/2.0/3.0mm
Length	Customized

Application

• Testing equipment
• FTTX+LAN
• Optical fiber CATV optical communication system
• Telecommunication

Ordering information

Fiber type	Fiber	Connector type	Cord type	cable diameter	length(M)	Polishing
1.9/125-G652D 2.9/125-G655 3.9/125-G657 4.50/125-OM2 5.62.5/125-OM1 6.50/125-OM3	1.Corning 2.China Fiber 3.other	1:SC 2:FC 3:LC 4:ST 5:MU 6:DIN 7:MTRJ 8:E200 9:MPO/MTP 10:SMA X: Other	1.Simplex 2.Duplex 3.other	1.0.9mm 2.2.0mm 3.3.0mm	0005-0.5m 0010-1m 0050-5m 0100-10m 0200-20m 2000-200m	P:PC U:UPC A:APC M:MTRJ Male connector F:MTRJ Female Connecto

Product packing details

Products Packing
Inner packing	1piece per plastic bag
Min order	1 pieces
100 pieces weight	2-3kg
Outer packing	Carton box

Product Pictures

Factory Image

Shipping

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
