    1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter

    Ask Lasest Price
    Brand Name : Fibery
    Model Number : FYSFP1X9
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 50000Unit/Month
    Delivery Time : 3-6 work days
    • Product Details
    • Company Profile

    1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter

    Fiber Optic Transceiver 1.25G Bidi SC ST 1x9 Module For Giga Media Converter

    Description

    1x9 optical transceiver is designed for use in 0~2.67Gbps data links. It provide the SC/FC/ST optical port that is compatible with the industry standard connector. Both the transmitter and the receiver are packaged together with a top plastic cover and bottom shield.


    Feature

    Single Fiber Bi-directional Transmission

    Standard 1×9 Footprint

    Single SC, FC or ST Connector Optional

    Single +3.3V or +5V Power Supply

    PECL Differential Inputs and Outputs

    PECL/LVPECL or TTL/LVTTL Signal Detection Output Alternative

    Operating case temperature:
    Commerical:0 to 70 °C Industrial:-40 to 85 °C

    Absolute Maximum Ratings

    ParameterSymbolMin.Max.UnitNote
    Supply VoltageVcc-0.54.0V
    Storage Temperature-4085°C
    Relative Humidity585%

    Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.


    OPTICAL CHARACTERISTICS

    l )Transmitter

    arameterSymbolMin.TypMax.UnitNote
    Operating WavelengthλC127013101360nm
    147014901510
    Ave. output power (Enabled)Po-8-4dBm1
    Extinction RatioER9dB1
    RMS spectral widthΔλ4nm
    Rise/Fall time (20%~80%)Tr/Tf0.26ps2
    Output Eye MaskCompliant with IEEE802.3 z (class 1 laser safety)

    Note (1): Measure at 2^23-1 NRZ PRBS pattern

    Note (2): Transmitter eye mask definition

    2)Receiver

    ParameterSymbolMin.TypMax.UnitNote
    Operating Wavelength147014901510nm
    127013101360
    SensitivityPsen-22dBm1
    Min. overloadPimax-3dBm
    LOS AssertPa-35dBm
    LOS De-assertPd-23dBm2
    LOS HysteresisPd-Pa0.56dB

    Note (1): Measured with Light source 1490nm(1310nm), ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ.

    Note (2): When LOS de-asserted, the RX data+/- output is signal output.


    Ordering Information

    1x9 Module BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, with DDM
    1x9 Module BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, with DDM
    1x9 Module BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, without DDM
    1x9 Module BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, without DDM

    Applications
    1. Gigabit Ethernet
    2. Fiber Channel
    3. Switch to Switch interface
    4. Switched backplane applications
    5. Router/Server interface
    6. Other optical transmission systems
    Product Pictures

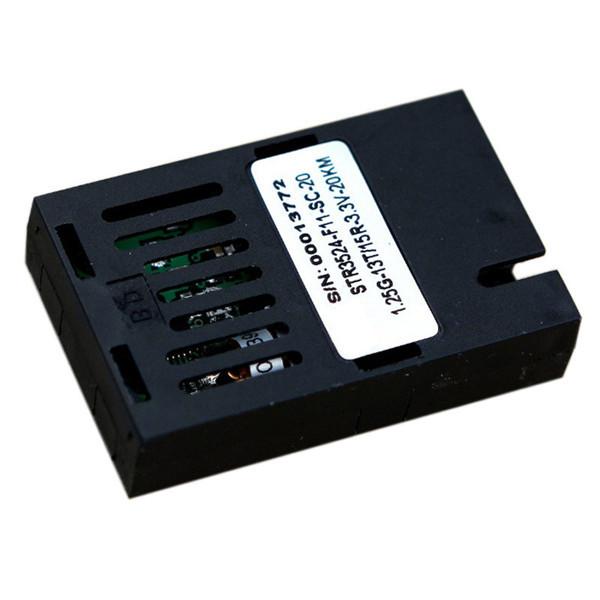

    1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter

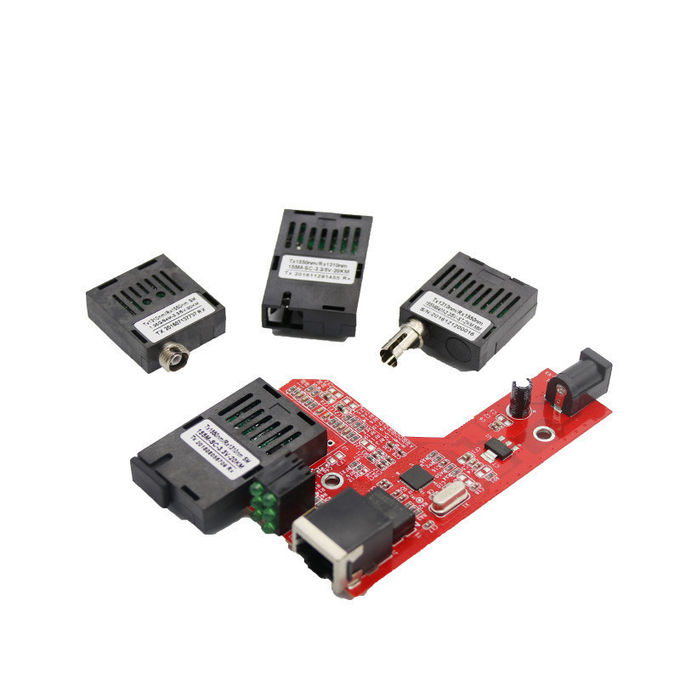

    1x9 Fiber Optic Transceiver 1.25G Bidi SC ST For Giga Media Converter
    Factory Image
    Shipping

    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.


    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
