High Efficiency XPON ONU 1GE+1Fe+Wifi Dual Mode Compatible With Zte Huawei Olt

Xpon Onu 1GE+1Fe+Wifi Dual Mode Onu Gepon Compatible With Zte Huawei Olt

Description

FYE1G1FW is designed as HGU (Home Gateway Unit) in deferent FTTH solutions , The carrier-class FTTH application provides data service access.
FYE1G1FW is based on mature and stable, cost-effective EPON technology. It can access to the major EPON OLT.
FYE1G1FWadopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
FYE1G1FW is designed by Realtek chipset 9603C.

Functional Feature

Support EPON Standard of China Telecom EPON CTC3.0
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA

Support port Isolation and port vlan configuration
Support Firewall function and IGMP Snooping/Proxy multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system

Hardware Specificaion

Technical item	Details
PON Interface	1 EPON port(EPON PX20+ )
	Receiving sensitivity: ≤-27dBm
	Transmitting optical power: 0~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
LAN Interface	1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

Wireless	Compliant with IEEE802.11b/g/n,
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps,
	2T2R,2 external antenna 5dBi,
	Support: multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED	7 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2
Push-Button	3,For Function of Reset,WLAN,WPS

Operating Condition	Temperature: 0℃~+50℃
	Humidity: 10%~90%(non-condensing)
Storing Condition	Temperature: -30℃~+60℃
	Humidity: 10%~90%(non-condensing)
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm(L×W×H)
Net Weight	0.24Kg

Panel lights Introduction

High Efficiency XPON ONU 1GE+1Fe+Wifi Dual Mode Compatible With Zte Huawei Olt

Application

Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV,IP Camera ,WIFI etc

Ordering information

Product Name	Product Model	Descriptions
SFF Type EPON ONU	1G1F+WIFI	1x10/100/1000Mbps Ethernet, 1 x 10/100Mbps Ethernet , 1 SC/UPC Connector, 2.4GHz WIFI, Plastic Casing, External power supply adapter

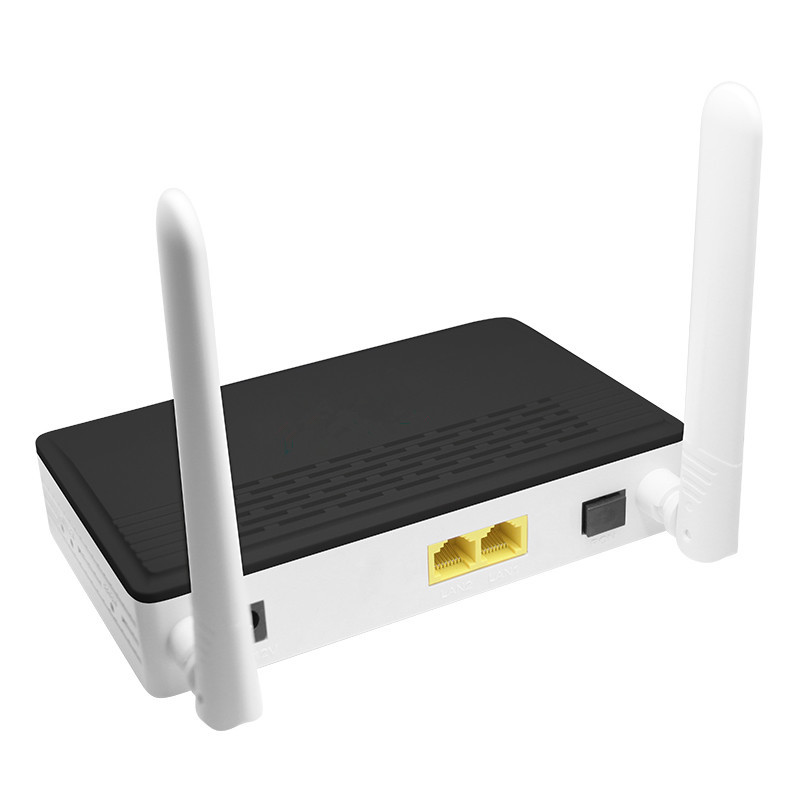

Product Pictures

High Efficiency XPON ONU 1GE+1Fe+Wifi Dual Mode Compatible With Zte Huawei Olt

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
