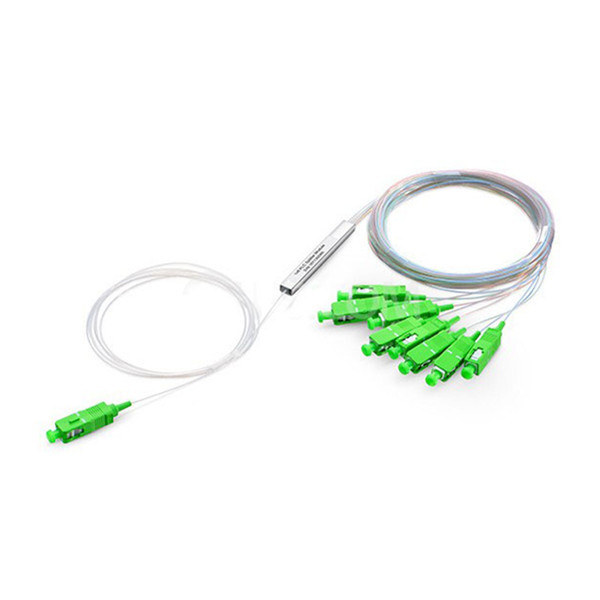

PLC Fiber Optical Splitter 1x8 900um 1M Sc/apc Fiber Splitter For Gepon Solution

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

It‘s mainly used for various connection and distribution boxes or network cabinets.

Fiber Optic splitter is also called optical splitter,is one of the most important passive devices in optical fiber link,is with multiple inputs and multiple output end of the optical fiber connected devices.The fiber optic splitter by the light spligtting principle can be divided into the fused biconical taper(FBT) and planar wavegulde type(PLC).

The high performance 1×N or 2×N, single mode, passive power splitter based on PLC technology. The device uniformly splits the optical signals present at the input ports to multiple output ports. Power splitters can also be used in the reverse direction in order to combine multiple optical signals present at the output ports into the input ports.

Feature

1. Excellent Uniformity
2. High reliability, stability
3. The quality is more credible and stable than fusion coupler splitter
4. With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity
5. Uniform Power Splitter
6. Compact Design
7. Wide Operating Wavelength
8. Wide Operating Temperature
9. Qualified Under Telcordia GR-1221 and GR-1209

Specificaion

Specifications 2×N PLC Splitter

Note:The above parameters were measured at room temperature.

Application

• Access Network,EPON,GPON or WDM-PON
• CATV system
• Optical communication systems
• Testing instruments
• FTTH, FTTB

Product Pictures

Factory Image
