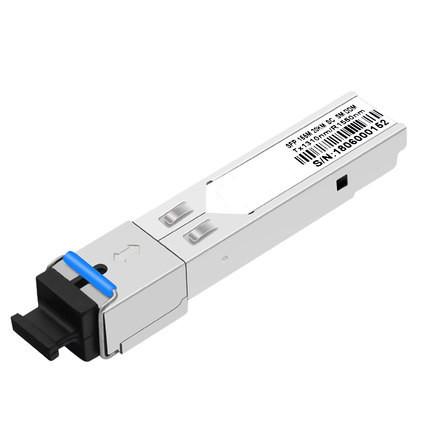

Wdm SFP Module 155M Bidi Singlemode 1310nm 1550nm 20Km Sfp Lc
Transceiver
Description
SFP, short for Small Form-factor Pluggable, aka Mini-GBIC, is a
compact optical transceiver module used in optical communications.
The SFP transceiver modules are designed to support SONET/H, Fast
Ethernet, Gigabit Ethernet, Fibre Channel and other communications
standards. Wanglink manufactures and supplies a complete range of
SFP transceiver modules which can be Customized.
SFP-BIDI transceivers are high performance, cost effective modules
supporting dual data-rate of 155M/1.25Gbps/1.0625Gbps and 120km
transmission distance with SMF.The transceiver consists of three
sections: a DFB laser transmitter, a PIN photodiode integrated with
a trans-impedance preamplifier (TIA) and MCU control unit. All
modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement
(MSA) and SFF-8472. For further information, please refer to SFP
MSA.
Feature
● Supports 155M
● Bi-Directional LC/PC connector
● Hot pluggable SFP footprint
● 1310nm DFB laser and 1550nm APD photo detector
● 1550nm DFB laser and 1310nm APD photo detector
● Applicable for 120Km SMF connection
● Low power consumption, < 1.0W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °COrdering Information
| SFP BIDI,LC,Tx1310/Rx1550nm 155M, 20km, with DDM |
| SFP BIDI,LC,Tx1550/Rx1310nm 155M, 20km, with DDM |
| SFP BIDI,LC,Tx1310/Rx1550nm 155M, 20km, without DDM |
| SFP BIDI,LC,Tx1550/Rx1310nm 155M, 20km, without DDM |
Applications
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15,Class B compliant
- FDA 21 CFR 1040.10 and 1040.11,class1 compliant
- RoHS compliant
Product Pictures
Factory Image
Shipping
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
