Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | 85 | °C | |
| Relative Humidity | RH | 0 | 85 | % | |
Note: Stress in excess of the maximum absolute ratings can cause
permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Data Rate | DR | 9.95 | 10.3125 | 11.3 | Gb/s | |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | | | 500 | mA | |
| Operating Case Temp. | Tc | 0 | | 70 | °C | |
| TI | -20 | | 80 | |
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-20 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Differential data input swing | VIN,PP | 120 | | 820 | mVpp | |
| Transmit Disable Voltage | VD | 2.0 | | Vcc | V | 1 |
| Transmit Enable Voltage | VEN | Vee | | Vee+0.8 | |
| Input differential impedance | Rin | | 100 | | Ω | 2 |
| Transmit Disable Assert Time | Tda | | | 10 | us | |
| Receiver |
| Differential data output swing | Vout,pp | 340 | | 850 | mVpp | 3 |
| Output rise time and fall time | Tr, Tf | | | 38 | Ps | 4 |
| LOS Fault | VLOS_F | VCC-0.5 | | Vcc | V | 5 |
| LOS Normal | VLOS_N | Vee | | Vee+0.5 | V | 5 |
Notes:
1. Or open circuit.
2. After internal AC coupling.
3. Into 100 ohms differential termination.
4. 20 – 80 %.
5. Loss Of Signal is open collector to be pulled up with a 4.7k~
10k resistor to 3.15 – 3.6V.
Logic 0,indicates normal operation; logic 1 indicates no signal
detected.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-20 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1260 | 1270 | 1280 | nm | |
| 1320 | 1330 | 1340 | |
| Ave. output power (Enabled) | PAVE | -3 | | 3 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Optical Modulation Amplitude | POMA | -2.8 | | 0 | dB | OMA |
| Extinction Ratio | ER | 4 | 4.5 | | dB | |
| RMS spectral width | Δλ | | | 0.45 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 45 | ps | |
| Dispersion penalty | TDP | | | 3.2 | dB | |
| Relative Intensity Noise | RIN | | | -130 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1320 | 1330 | 1340 | nm | |
| 1260 | 1270 | 1280 | |
| Receiver Sensitivity(ER=4.5) | PSEN1 | | | -12.6 | dBm | 2 |
| Receiver Sensitivity(ER=6) | PSEN2 | | | -14.4 | dBm | 2 |
| Average Receive Power | PAVE | | | 0.5 | dBm | |
| Receiver Reflectance | Rrx | | | -12 | dB | |
| LOS Assert | Pa | -30 | | | dBm | |
| LOS De-assert | Pd | | | -17 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
| PIN # | Name | Function | Name/Description | Notes |
| 1 | | GND | Module Ground | 1 |
| 2 | | VEE5 | Optional -5.2V Power Supply (Not requireed) | |
| 3 | LVTTL-I | MOD_DESEL | Module De-select; When held low allows the module to respond to
2-wire serial interface | |
| 4 | LVTTL-O | INTb | Interrupt; Indicates presence of an important condition which can
be read via the 2-wire serial interface | 2 |
| 5 | LVTTL-I | TX_DIS | Transmitter Disable; Turns off transmitter laser output | |
| 6 | | VCC5 | +5V Power Supply (Not required) | |
| 7 | | GND | Module Ground | 1 |
| 8 | | VCC3 | +3.3V Power Supply | |
| 9 | | VCC3 | +3.3V Power Supply | |
| 10 | LVTTL-I/O | SCL | 2-Wire Serial Interface Clock | 2 |
| 11 | LVTTL-I/O | SDA | 2-Wire Serial Interface Data Line | 2 |
| 12 | LVTTL-O | MOD_Abs | Indicates Module is not present. Grounded in the Module | 2 |
| 13 | LVTTL-O | MOD_NR | Module Not Ready; Indicating Module Operational Fault | 2 |
| 14 | LVTTL-O | RX_LOS | Receiver Loss Of Signal Indicator | 2 |
| 15 | | GND | Module Ground | 1 |
| 16 | | GND | Module Ground | 1 |
| 17 | CML-O | RDN | Receiver Inverted Data Output | |
| 18 | CML-O | RDP | Receiver Non-Inverted Data Output | |
| 19 | | GND | Module Ground | 1 |
| 20 | | VCC2 | +1.8V Power Supply (Not required). | |
| 21 | LVTTL-I | P_DOWN/RST | Power down; When high, requires the module to limit power
consumption to 1.5W or below. 2-Wire serial interface must be
functional in the low power mode. | |
| 21 | LVTTL-I | P_DOWN/RST | Reset; The falling edge initiates a complete reset of the module
including the2-wire serial interface, equivalent to a power cycle. | |
| 22 | | VCC2 | +1.8V Power Supply (Not required) | |
| 23 | | GND | Module Ground | 1 |
| 24 | PECL-I | REFCLK+ | Not used, internally terminated to 50ohm (100ohm diff). | 3 |
| 25 | PECL-I | REFCLK- | Not used, internally terminated to 50ohm (100ohm diff). | 3 |
| 26 | | GND | Module Ground | 1 |
| 27 | | GND | Module Ground | 1 |
| 28 | CML-I | TD- | Transmitter Inverted Data Input | |
| 29 | CML-I | TD+ | Transmitter Non-Inverted Data Input | |
| 30 | | GND | Module Ground | 1 |
Notes:
Notes:
1. Module circuit ground is isolated from module chassis ground
within the module.
2. Open collector; should be pulled up with 4.7k – 10k ohms on host
board to a voltage between 3.15Vand 3.6V.
3. Reference Clock input is not required.

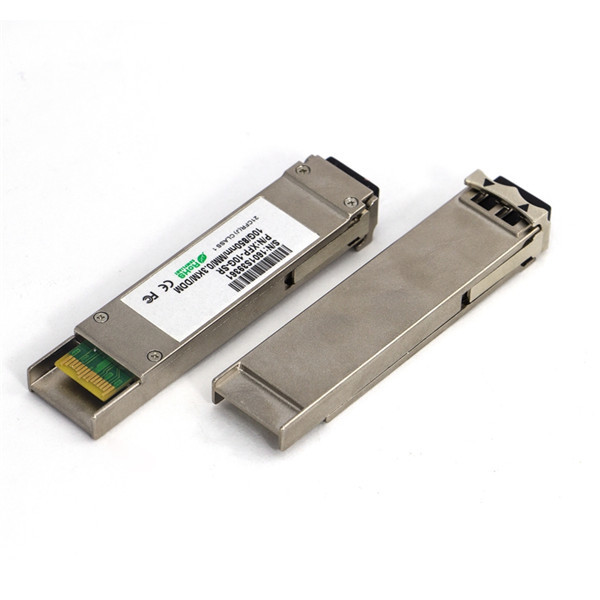

Ordering Information
| XFP Bidi,9.95 to 11.3Gb/s, 1270/1330nm, 20km, 0~70℃, with Digital
Diagnostic Monitor |
| XFP Bidi,9.95 to 11.3Gb/s, 1330/1270nm, 20km, 0~70℃, with Digital
Diagnostic Monitor |
| XFP Bidi,9.95 to 11.3Gb/s, 1270/1330nm, 20km, -20~80℃, with Digital
Diagnostic Monitor |
| XFP Bidi,9.95 to 11.3Gb/s, 1330/1270nm, 20km, -20~80℃, with Digital
Diagnostic Monitor |
