    1.25G Bidi Fiber Optic SFP Module SC Connector 20Km Gigabit Optical Transceiver

    Ask Lasest Price
    Brand Name : Fibery
    Model Number : FYSFPS125S
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 50000Unit/Month
    Delivery Time : 3-6 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    1.25G Bidi Fiber Optic SFP Module SC Connector 20Km Gigabit Optical Transceiver

    1.25G Bidi Fiber Optic SFP Module SC Connector 20Km Gigabit Optical Transceiver

    Description

    SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and
    120km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode
    integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

    Feature

    ●Supports 1.25Gbps/1.0625Gbps bit rates
    ●Bi-Directional SC/PC connector
    ●Hot pluggable SFP footprint
    ●1490nm DFB laser and 1550nm APD photo detector
    ●1550nm DFB laser and 1490nm APD photo detector
    ●Applicable for 120Km SMF connection
    ●Low power consumption, < 1.0W
    ●Digital Diagnostic Monitor Interface
    ●Compliant with SFP MSA and SFF-8472
    ●Very low EMI and excellent ESD protection
    ●Operating case temperature:
    Commerical:0 to 70 °C Industrial:-40 to 85 °C

    Absolute Maximum Ratings

    ParameterSymbolMin.Max.UnitNote
    Supply VoltageVcc-0.54.0V
    Storage Temperature-4085°C
    Relative Humidity585%

    Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.


    General Operating Characteristics

    ParameterSymbolMin.TypMax.UnitNote

    Data Rate


    1250Mb/s
    Supply VoltageVcc3.133.33.47V
    Supply CurrentIcc5220mA
    Operating Case Temp.Tc070°C
    -1080°C
    -4085°C


    OPTICAL CHARACTERISTICS

    l )Transmitter

    arameterSymbolMin.TypMax.UnitNote
    Operating WavelengthλC127013101360nm
    147014901510
    Ave. output power (Enabled)Po-8-4dBm1
    Extinction RatioER9dB1
    RMS spectral widthΔλ4nm
    Rise/Fall time (20%~80%)Tr/Tf0.26ps2
    Output Eye MaskCompliant with IEEE802.3 z (class 1 laser safety)

    Note (1): Measure at 2^23-1 NRZ PRBS pattern

    Note (2): Transmitter eye mask definition

    2)Receiver

    ParameterSymbolMin.TypMax.UnitNote
    Operating Wavelength147014901510nm
    127013101360
    SensitivityPsen-22dBm1
    Min. overloadPimax-3dBm
    LOS AssertPa-35dBm
    LOS De-assertPd-23dBm2
    LOS HysteresisPd-Pa0.56dB

    Note (1): Measured with Light source 1490nm(1310nm), ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ.

    Note (2): When LOS de-asserted, the RX data+/- output is signal output.


    Ordering Information

    SFP BIDI,LC,Tx1310/Rx1490nm 1.25Gbps, 20km, with DDM
    SFP BIDI,LC,Tx1490/Rx1310nm 1.25Gbps, 20km, with DDM
    SFP BIDI,LC,Tx1310/Rx1490nm 1.25Gbps, 20km, without DDM
    SFP BIDI,LC,Tx1490/Rx1310nm 1.25Gbps, 20km, without DDM

    Applications
    1. Gigabit Ethernet
    2. Fiber Channel
    3. Switch to Switch interface
    4. Switched backplane applications
    5. Router/Server interface
    6. Other optical transmission systems

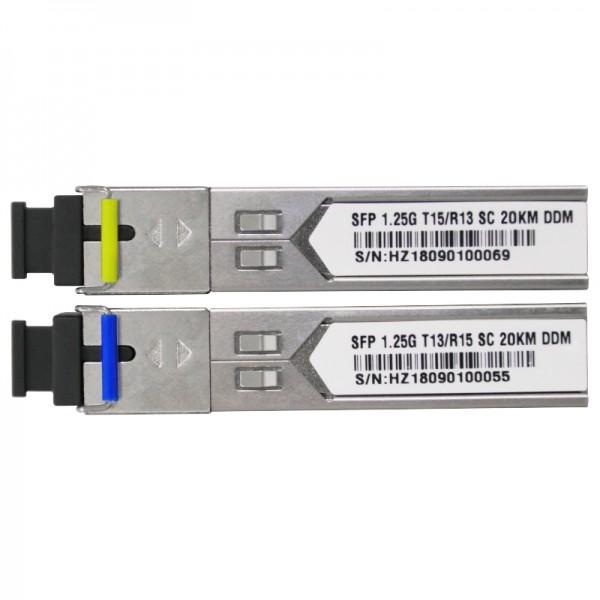

    Product Pictures
    1.25G Bidi Fiber Optic SFP Module SC Connector 20Km Gigabit Optical Transceiver
    1.25G Bidi Fiber Optic SFP Module SC Connector 20Km Gigabit Optical Transceiver
    Factory Image
    Shipping

    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.


    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
