Optical Network Terminal Gpon Epon OLT AN5516-01 16 Slots With GCOB
GC8B OLT Board
Description
The AN5516-01 has a strong adaptability to the environment and can
be deployed quickly. In FTTx networks, the OLT is moved closer to
the user side, which can save backbone optical cable resources.
This solves the problem of a few users and long access distance,
when FTTx services are applied in an area with a low population
density.
Deployed at the remote end, including the base stations (BSs) and
outdoor environments
Connected to MxUs or ONTs and used in FTTB/C and FTTH scenarios
Connected to xDSL terminals and phones and used in the MSAN/DSLAM
scenario
Chassis supports 16 Service Slots
One power slot, can supply with 2 ports DC redundancy
Two slot redundancy for main control board
Support GPON, EPON and P2P (Optical Access);xDSL and POTS(Copper
Access)
Support GPON & EPON simultaneously
Support 8-GPON port interface card GC8B , 16-GPON port interface
card GCOB
Support GPON split ration 1:128
Support GE uplink (GU6F) or 10GE uplink (HU1A/HU2A*2)
Full front card and front lines design.
Support hot plug for all cards and PON modules.
Support redundancy error-check protection for services, controller
and uplink cards.
End-to-end protection, uplink ports RSTP/LACP protection and
downlink PON port millisecond level switch protection.
Green Energy
With high performance and low power consumption chip the overall
power consumption is lower than the average industry level
8-level temperature control intelligent fan supporting free ports
sleep mode and energy saving
Parameter
| Characteristics | Descriptions |
| AN5516-01 | AN5516-06 | AN5516-04 |
| Overall performance | | |
| Core switching capacity | 976G/bits | 400G/bits | 400G/bits |
| Backplane bus switching capacity | 3.25TG/bits | 432G/bits | 80G/bits |
| Transmission distance | 20KM | 20KM | 20KM |
| Splitting ratio | 1:64 | 1:64 | 1:64 |
| Core switching standby switchover time | <50ms | <50ms | <50ms |
| Uplink card standby switchover time | <50ms | <50ms | <50ms |
| Optical path protection switching time | <200ms | <200ms | <200ms |
| Operation temperature | 0°C~+50°C |
| DBA | | |
| Minimum bandwidth allocation granularity | ≤64kbit/s | ≤64kbit/s | ≤64kbit/s |
| Configurable minimum bandwidth | ≤256kbit/s | ≤256kbit/s | ≤256kbit/s |
| Precision | ±5% | ±5% | ±5% |
Feature
The product is designed to help carriers build networks with larger
bandwidths, higher speeds, and smarter connectivity to deliver
better service experience.
Providing GPON, 10G GPON (including XG-PON and XGS-PON), P2PGE, and
10GE access, the AN5516-01 OLT supports deployment on FTTH,FTTD,
FTTB, FTTC, and distributed converged cable access platform(D-CCAP)
networks. This makes it applicable to home access,enterprise
access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to
aggregate all services on one fiber network.
The AN5516-01 OLT functions as a large-capacity aggregation device
on the network to aggregate the traffic from ONTs, MDUs, and campus
switches, thereby simplifying the network architecture and reducing
the OPEX.
Configuration
1 AN5516-01 Chassis
2 HSWA control board
2 PWR DC Power board (We also selling AC to DC(220V-48V) Power
converter )
2 GU6F 1.25G Uplink board or HU1A/HU2A 10G Uplink board
1 GC8B 8Ports GPON baord with 8pcs SFP Module or EC8B 8Ports EPON
Board with 8pcs SFP Module
1 GCOB 16Ports GPON baord with 16pcs SFP Module or ECOB 16Ports
EPON Board with 16pcs SFP Module
1 FAN
Power cable & Accessories
Service boards
8 ports 1G GPON board:GC8B
8 ports 1G EPON board:EC8B
16 ports 1G GPON board:GCOB
16 ports 1G EPON board:ECOB

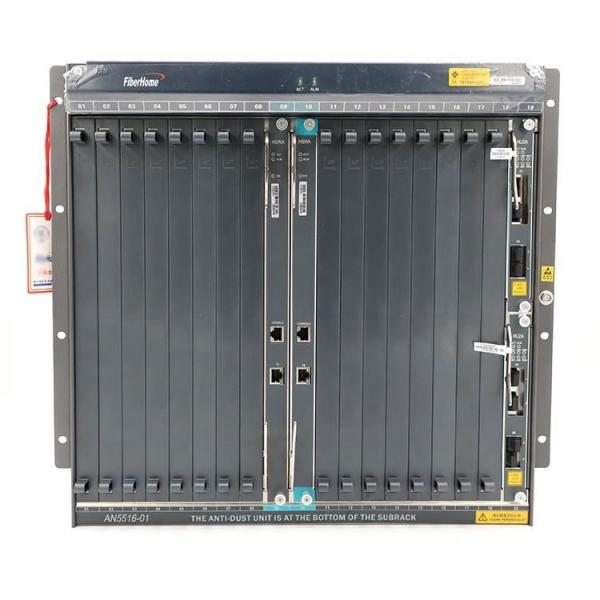

Product Pictures
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
