    Large Capacity Zte Gpon Olt 10G ZTE Zxa10 C300 With 8/16 Ports GTGH/ETGH/GTGO Broad

    Ask Lasest Price
    Brand Name : ZTE
    Model Number : Zxa10 C300
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 500Set/Month
    Delivery Time : 3-6 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    Large Capacity Zte Gpon Olt 10G ZTE Zxa10 C300 With 8/16 Ports GTGH/ETGH/GTGO Broad

    Zte Gpon Olt 10G ZTE C300 Gpon Olt Price With 8/16 Ports GTGH/ETGH/GTGO Broad

    Description

    The ZTE ZXA10 C300 GPON OLT allows operators to offer end users high bandwidth, multiple services, QoS and security efficiently and achieve more network TCO reduction. It balances massive optical access roll-out and economy. It provides the stable technology and service platform for full-service access and management such as HSI, VoIP, TDM, IPTV, and mobile backhaul.


    Specificaion

    Large Capacity Zte Gpon Olt 10G ZTE Zxa10 C300 With 8/16 Ports GTGH/ETGH/GTGO Broad

    1. Unified platform for GPON,EPON and P2P

    2. Large capacity and high density: meet operators’ requirements for mass optical access roll-out

    3. Future-proof: support NG-PON, like 10G EPON, 10G GPON, WDM PON, and LR PON

    4. Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc

    5. Diverse interfaces: besides P2MP, P2P and TDM interfaces can also be provided for business and residential application

    6. Enhanced multicast function: meets mass IPTV roll-out

    7. Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet limitation.

    8. Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.

    9. Flexible networking topologies: Various uplink interface and subtending interface

    10. High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/RSTP/MSTP for uplink


    Configurations

    GPON / EPON OLT ZXA10 C300 10U with 14 Slot for Pon Board
    Configuration options
    ZXA10 C300Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+GUFQ; accessories
    ZXA10 C300Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+2*GUFQ; accessories
    ZXA10 C300Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+HUTQ(or HUVQ); accessories
    ZXA10 C300Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+2*HUTQ(or HUVQ); accessories
    ZXA10 C300Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+HUTQ(or HUVQ)+GUFQ; accessories
    ZTE OLT Option Part
    GTGO8 ports GPON board with 8 B+ modules.
    GTGO8 ports GPON board with 8 C+ modules.
    GTGO8 ports GPON board with 8 C++ modules.
    GTGH16 ports GPON board with 16 B+ modules.
    GTGH16 ports GPON board with 16 C+ modules.
    GTGH16 ports GPON board with 16 C++ modules.
    GTTO8 ports 10G GPON board with 8 10G GPON modules
    GTXO8 ports 10G GPON board with 8 10G GPON modules
    ETGO8 ports EPON board with 8 modules.
    ETGH16 ports EPON board with 16 modules
    ETTO8 ports 10G EPON board with 8 10G EPON modules
    GUSQ2*GE optical + 2*GE/FE RJ45 uplink card
    GUFQ4*GE/FE optical interface Ethernet uplink card
    HUTQ/HUVQ2 ports 10GE and 2 ports GE optical interface Ethernet uplink card
    SMXA/1Tri-functional card for C320 , the switching, control card & GE uplink
    SMXA/3Tri-functional card for C320 , the switching, control card & 10GE uplink

    System Architecture

    •Chassis Configuration (21”)

    -- Total 23 slots

    -- 16 slots for universal line cards

    -- 2 slots for switch & control cards

    -- 2 slots for power cards

    -- 2 slots for uplink and cascading interfaces

    -- 1 slot for environment detection card

    •Chassis Configuration (19”)

    --Total 21 slots

    -- 14 slots for universal line cards

    -- 2 slots for switch& control cards

    -- 2 slots for power cards

    -- 2 slots for uplink and cascading interfaces

    -- 1 slot for environment detection card

    •Subscriber Card Density

    -- GPON card: 8 ports per card

    -- EPON card: 8 ports per card

    -- P2P card: 16 ports per card


    Application

    ZXA10 C300 is a future-proof and high-capability optical access platform, which is a unified platform for GPON, EPON, 10G EPON, PTP, and the smooth migration of XG-PON1, NG-PON2 with a 300mm deep shelf.
    ZXA10 C300, the world’s first future-proof and largest capacity optical access platform, has been developed with regard to mass optical access roll-out as well as economy. It provides HIS, VoIP, TDM, IPTV, mobile backhaul and other services access.

    1.GPON 2.ZTE GPON OLT or EPON OLT C300 Series
    3.FTTC/FTTB/FTTH/FTTO/FTTM 4.support HSI/VoIP/TDM/IPTV/CATV/2G/3G

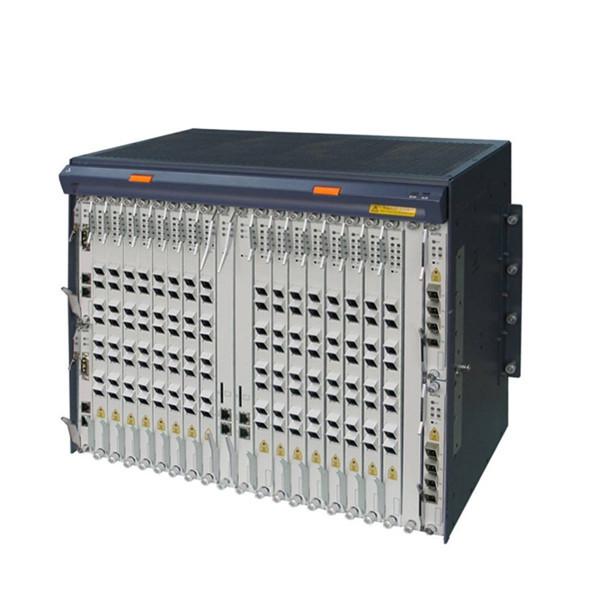

    Product Pictures

    Large Capacity Zte Gpon Olt 10G ZTE Zxa10 C300 With 8/16 Ports GTGH/ETGH/GTGO Broad

    Large Capacity Zte Gpon Olt 10G ZTE Zxa10 C300 With 8/16 Ports GTGH/ETGH/GTGO Broad

    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Quality Large Capacity Zte Gpon Olt 10G ZTE Zxa10 C300 With 8/16 Ports GTGH/ETGH/GTGO Broad for sale
