Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps

Product Categories
Shenzhen Fibery Photoelectron Technology Ltd.,
Contact Now
    Buy cheap Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps from wholesalers

    Buy cheap Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps from wholesalers
    • Buy cheap Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps from wholesalers
    • Buy cheap Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps from wholesalers
    • Buy cheap Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps from wholesalers
    • Buy cheap Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps from wholesalers

    Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps

    Ask Lasest Price
    Brand Name : Huawei
    Model Number : HG8310M
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 5000Unit/Month
    Delivery Time : 5-10 work days
    Price : Negotiable
    • Product Details
    • Company Profile

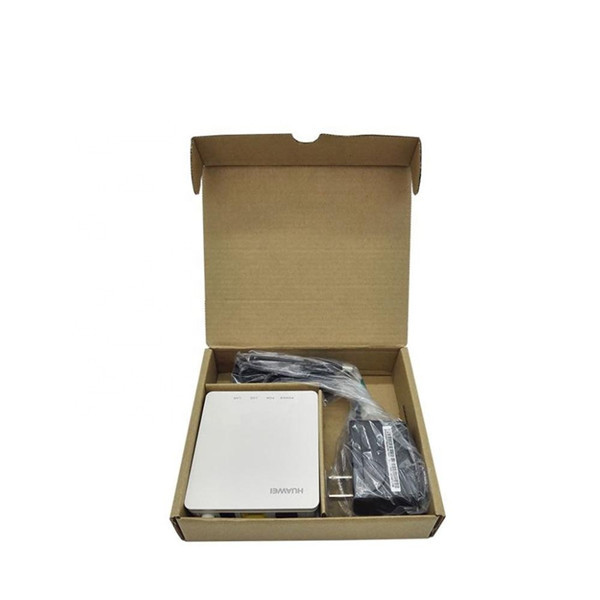

    Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps

    Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware

    Description

    The Echo Life HG8010 is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

    The HG8010 provides one GE/FE auto-adapting Ethernet port. The HG8010 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
    Specification
    Device Parameters
    Dimensions (H x W x D)

    (115 x 94 x 27)mm (V300R015C00 and earlier)

    (82 x 90 x 27)mm (V300R015C10)

    Weightabout 500g
    Operating temperature0°C to +40°C
    Operating humidity5% RH to 95% RH (non-condensing)
    Power adapter input100-240 V AC, 50-60 Hz
    System power supply11-14 V DC, 1A
    Static power consumption3W
    Maximum power consumption3.5W
    Ports1GE
    IndicatorsPOWER/PON/LOS/LAN
    Interface Parameters
    Ethernet Port

    • Ethernet port-based VLAN tags and tag removal

    • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

    • QinQ VLAN

    • Limit on the number of learned MAC addresses

    • MAC address learning

    • Transparent transmission of IPv6 packets at Layer 2

    GPON Port

    • Class B+

    • Receiver sensitivity: -27dBm

    • Wavelengths: US 1310nm, DS 1490nm

    • WBF

    • Flexible mapping between GEM Port and TCONT

    • GPON: consistent with the SN or password authentication defined in G.984.3

    • Bi-directional FEC

    • SR-DBA and NSR-DBA

    Product Function
    Smart O&M

    • Variable-length OMCI messages

    • Active/Passive rogue ONT detection and isolation

    • PPPoE/DHCP simulation testing

    QoS

    • Ethernet port rate limitation

    • 802.1p priority

    • SP/WRR/SP+WRR

    • Broadcast packet rate limitation

    • Flow mapping based on the VLAN ID, port ID, or/and 802.1p

    Security• MAC addresses

    Common

    O&M

    • OMCI/Web UI

    • Dual-system software backup and rollback

    • 802.1ag Ethernet OAM

    • Optical link measurement and diagnosis

    • Loopback check

    Multicast

    • IGMP v2/v3 snooping

    • MLD v1/v2 snooping

    • Fast leave

    • VLAN tag translation, transparent transmission, and removal for downstream multicast packets

    • IGMP/MLD protocol packet rate limitation

    Power Saving

    • Indicator power saving

    • Power consumption reduction of idle componets in power-saving state

    • COCV4


    Highlight Features

    • Plug and play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
    • Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault locating. Supports remote batch upgrades, and up to 2,000 devices can be upgraded each hour
    • Link monitoring: IEEE 802.1ag-based Ethernet OAM that implements end-to-end (E2E) link detection and network isolation
    • Energy wise: SOC chips feature high-integration capabilities. Each chip integrates the PON, voice, gateway, and LSW modules, with 25 percent power savings

    Product details

    Huawei HG8310M 1Fe/Ge Port Gpon Huawei Ont With English Firmware 10/100/1000Mbps


    Products feature and application

    FiberhomePORTHG80101GE/FE
    AN5506-01A1GEHG8010C1FE
    AN5506-01B1GE+1POTSHG80404FE
    AN5506-02B2GE+1POTSHG81101POTS+1FE
    AN5506-04A4FEHG8110C1POTS+1FE
    AN5506-04B4FE+2POTSHG81201POTS+2FE
    AN5506-04FG4FE+2POTS+WIFIHG8120C1POTS+2FE
    ZTEPORTHG81202FE+1POTS
    ZXA10 F6011GEHG8240C/F/R2POTS+4FE
    ZXA10 F6122GE+1POTSHG82422POTS+4GE+1CATV
    ZXA10 F6072FE+1POTSHG82452POTS+4FE+USB+WiFi
    ZXA10 F6204GE+2POTSHG8245C/F/R2POTS+4FE+USB+WiFi
    ZXA10 F6431GEHG82472POTS+4GE+USB+CATV+WiFi
    ZXA10 F6604FE+2POTS+WIFI+2USBHG83101FE
    HG8310M1GE
    HG8345r4FE+WIFIHG83111POTS+1FE
    HG8346M2POTS+4FE+USB+WiFiHG83211POTS+2FE
    HG8346R2POTS+4FE+USB+WiFiHG8321R1POTS+2FE
    HG8347r2POTS+1GE+3FE+USB+WiFiHG8326r2POTS+1FE+WIFI
    HG84474POTS+4GE+USB+CATV+WiFiHG8340m4FE
    HG8540m4FEHG83422POTS+4FE
    HG8546m1POTS+4GE+USB+WiFiHG8342M2POTS+4FE
    HG8342R2POTS+4FE

    Ordering information

    Product nameProduct description
    HG8310MGpon Single Port

    Application
    Typical Solution : FTTH, TTTB, PON + EOC
    Typical Business: INTERNET, IPTV, VOD, IP Camera


    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
